ZX Self-Priming Centrifugal Pumps For Clean Water Or Chemicals

Short Description:

Series: ZX

The Series ZX self-priming pumps are newly developed self-priming centrifugal pumps for clean water or chemicals. The pumps have the compact structure, the long life expectancy and the high energy-efficiency to operate smoothly and reliably. It is just need to check the amount of liquid in the pump for self-priming before starting pumping. The self-priming centrifugal pumps are widely used for applications in the chemical, dyestuffs, petroleum, pharmaceutical, brewery, paper and pulp, metallurgical and mining industries and for oil discharge of oil carrying ships, as well as for water supply and sewage drainage of municipal, industrial and emergence services.


Feature

Data range

Capacity: to 800 m3/h

Head: to 70 m

Working temperature: to 1.6 MPa

Working pressure: to 130

Self-priming height: to 6.5 m



Performance parameters

Model Inlet Outlet Suction Motor Flow Head
(mm) (mm) (m) (KW) (m3/h) (m)
25ZX3.2-20 25 25 6.5 0.75 3.2 20
25ZX3.2-32 25 25 6.5 1.1 3.2 32
40ZX6.3-20 40 32 6.5 1.1 6.3 20
40ZX10-40 40 40 6.5 4 10 40
50ZX15-12 50 50 6.5 1.5 15 12
50ZX18-20 50 50 6.5 2.2 18 20
50ZX20-30 50 50 6.5 4 20 30
50ZX10-40 50 50 6.5 4 10 40
50ZX12.5-50 50 50 6.5 5.5 12.5 50
50ZX15-60 50 50 6.5 7.5 15 60
65ZX30-15 65 50 6.5 3 30 15
65ZX25-32 65 50 6 5.5 25 32
80ZX35-13 80 65 6 2.2 35 13
80ZX40-22 80 65 6 5.5 40 22
80ZX50-32 80 80 6 7.5 50 32
80ZX60-55 80 80 6 15 60 55
80ZX60-70 80 80 6 22 60 70
100ZX100-20 100 80 6 11 100 20
100ZX100-40 100 100 6 18.5 100 40
100ZX100-65 100 100 6 30 100 65
100ZX70-80 100 100 6 30 70 80
150ZX160-55 150 100 5 45 160 55
150ZX150-80 150 100 5 55 150 80
200ZX280-65 200 150 5 90 280 65

TECHNICAL DATA

Data range

Capacity: to 800 m3/h

Head: to 70 m

Working temperature: to 1.6 MPa

Working pressure: to 130

Self-priming height: to 6.5 m

Performance parameters

Model Inlet Outlet Suction Motor Flow Head
(mm) (mm) (m) (KW) (m3/h) (m)
25ZX3.2-20 25 25 6.5 0.75 3.2 20
25ZX3.2-32 25 25 6.5 1.1 3.2 32
40ZX6.3-20 40 32 6.5 1.1 6.3 20
40ZX10-40 40 40 6.5 4 10 40
50ZX15-12 50 50 6.5 1.5 15 12
50ZX18-20 50 50 6.5 2.2 18 20
50ZX20-30 50 50 6.5 4 20 30
50ZX10-40 50 50 6.5 4 10 40
50ZX12.5-50 50 50 6.5 5.5 12.5 50
50ZX15-60 50 50 6.5 7.5 15 60
65ZX30-15 65 50 6.5 3 30 15
65ZX25-32 65 50 6 5.5 25 32
80ZX35-13 80 65 6 2.2 35 13
80ZX40-22 80 65 6 5.5 40 22
80ZX50-32 80 80 6 7.5 50 32
80ZX60-55 80 80 6 15 60 55
80ZX60-70 80 80 6 22 60 70
100ZX100-20 100 80 6 11 100 20
100ZX100-40 100 100 6 18.5 100 40
100ZX100-65 100 100 6 30 100 65
100ZX70-80 100 100 6 30 70 80
150ZX160-55 150 100 5 45 160 55
150ZX150-80 150 100 5 55 150 80
200ZX280-65 200 150 5 90 280 65

APPLICANT

Pump Applicant
City environmental protection, building, fire control, chemical engineering, pharmacy, dyestuff, printing and dyeing, brewage, electricity, electroplating, paper making, petroleum, mine, equipment cooling, tanker discharging, etc.

Clear water, seawater, liquid containing acid or alkali chemical medium, and generally pasty slurry.

Types and specifications of filter press, so it is an ideal type to deliver the slurry to the filter for the filter pressing.

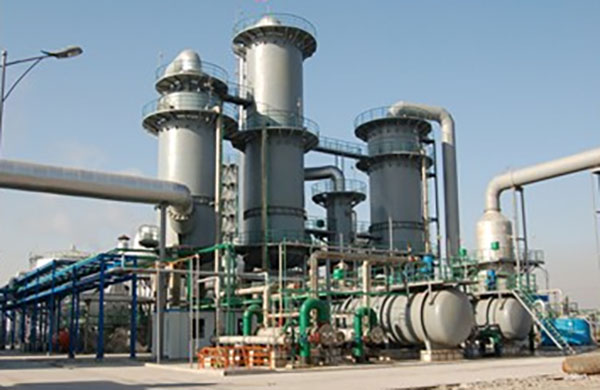

Part of Sample Project

10

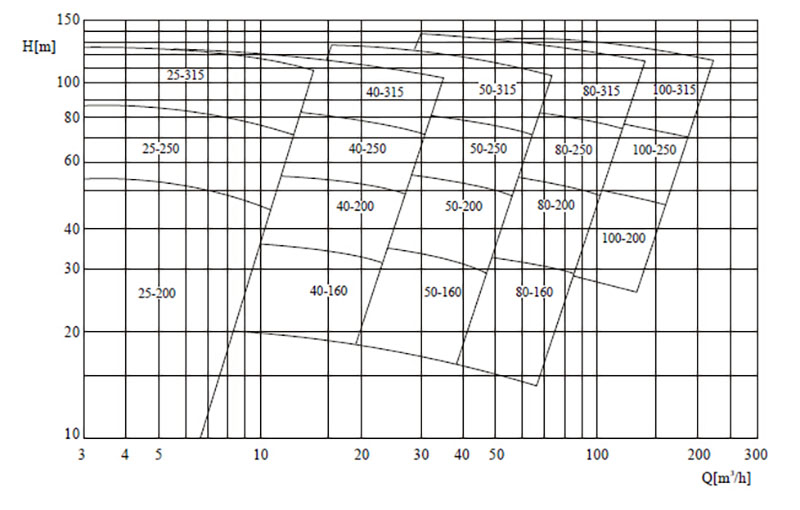

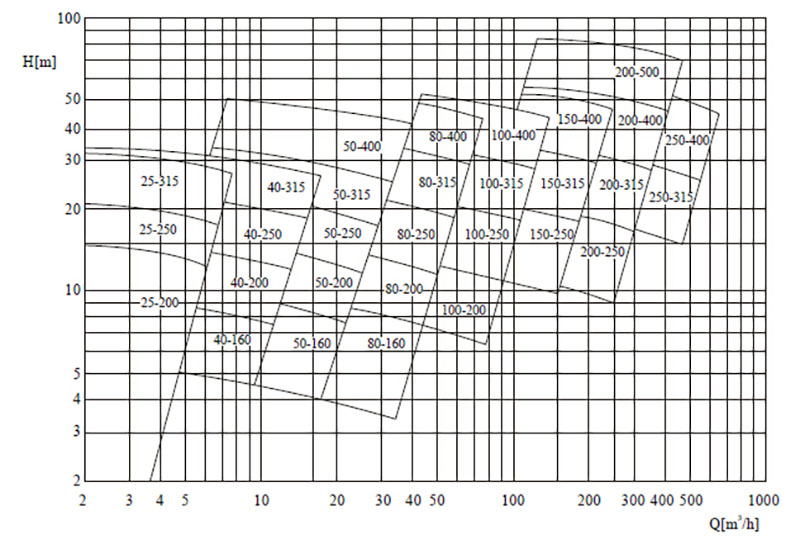

CURVE

01 02
