Quality Assurance Safety

 End suction centrifugal pumps get their name from the pathway the water takes to enter the pump. Typically the water enters one side of the impeller, and on horizontal end suction pumps, this appears to enter “the end” of the pump. Unlike the Split casing type the suction pipe and motor or engine are all parallel, eliminating the concern about pump rotation or orientation in the mechanical room. Since water is entering one side of the impeller, you lose the ability to have bearings on both sides of the impeller. Bearing support will be either from the motor itself, or from the pump power frame. This prevents the use of this type of pump on large water flow applications.

Single stage Pump Advantages:

Structure Description

♦ Compact structure, most application for modern constructions.
♦ Pump casing: the spiral casing with pipe connection is designed and manufactured by the most superior by draulic model nowadays, with inlet and outlet the same diameter. Flanges conform to GB4216.5, and are equipped with Rp1/4 or Rp 3/8 pressure testing plug.
♦ Impeller: closed impeller ,no limit to rotation direction under the water temperature below 80°C and 120°C.
♦ Special design of dynamic seal ring ensure well seal and reliable operation.

The TONGKE Pump Fire Pump Units, Systems, and Packaged Systems

Applications
Applications vary from small, basic electric motor driven to diesel engine driven, packaged systems. Standard units are designed to handle fresh water, but special materials are available for sea water and special liquid applications.
The TONGKE Fire Pumps give superior performance in Agriculture, General Industry, Building Trade, Power Industry, Fire Protection, Municipal, and Process applications.

Fire Protection
You have decided to reduce the risk of fire damage to your facility by installing a UL, ULC listed fire pump system. Your next decision is which system to purchase.
You want a fire pump that is proven in installations worldwide. Manufactured by an professional with vast experience in the fire protection field. You want complete service to field start-up. You want a TONGKE Pump.

Providing Pumping Solutions TONGKE Can Fulfill Your Requirements:
● Complete in-house fabrication capabilities
● Mechanical-run test capabilities with customer furnished equipment for all NFPA standards
● Horizontal models for capacities to 2,500 gpm
● Vertical models for capacities to 5,000 gpm
● In-line models for capacities to 1,500 gpm
● End suction models for capacities to 1,500 gpm
● Drives: electric motor or diesel engine
● Basic units and packaged systems.

Fire Pump Units & Packaged Systems
Electric Motor Drive and Diesel Engine Drive fire pumps can be furnished for any combination of pumps, drives, controls and accessories for listed and approved and NON Listed fire service applications. Packaged units and systems lower fire pump installation costs and offer these.

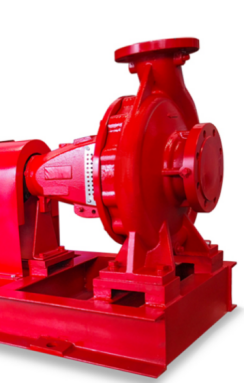

Electric Motor Drive Single stage fire pump

Diesel Engine Drive Single stage fire pump

FRQ

Q. What makes a fire pump different from other kinds of pumps?
A.  First, they meet the stringent requirements of NFPA Pamphlet 20, Underwriters Laboratories and Factory Mutual Research Corporation for reliability and unfailing service under the most difficult and demanding circumstances. This fact alone should speak well for TKFLO’s product quality and premium design features. Fire pumps are required to produce specific flow rates (GPM) and pressures of 40 PSI or greater. Further, the above mentioned agencies advise that the pumps should produce at least 65% of that pressure at 150% of the rated flow — and all the while operating at a 15 foot lift condition. The performance curves must be such that the shut-off head, or “churn,” is from 101% to 140% of the rated head, depending upon the agency’s definition of the term. TKFLO’s fire pumps are not offered for fire pump service unless they meet all agencies’ requirements.
Beyond performance characteristics, TKFLO fire pumps are carefully scrutinized by both NFPA and F.M. for reliability and long life through analysis of their design and construction. Casing integrity, for example, must be suitable to withstand a hydrostatic test of three times the maximum operating pressure without bursting! TKFLO’s compact and well-engineered design allows us to satisfy this specification with many of our 410 and 420 models. Engineering calculations for bearing life, bolt stress, shaft deflection, and shear stress must also be submitted to NFPA . and F.M. and must fall within conservative limits to ensure utmost reliability. Finally, after all the preliminary requirements have been met, the pump is ready for final certification testing to be witnessed by representatives from U.L. and F.M. Performance tests will require that several impeller diameters will be demonstrated satisfactorily, including the minimum and maximum, and several in between.

Q. What is the typical lead time for a fire pump?
A. Typical lead times run 5-8 weeks from release of an order. Call us for details.

Q. What is the easiest way of determining pump rotation?
A. For a horizontal split-case fire pump, if you are sitting on the motor facing the fire pump, from this vantage point a pump is right-hand, or clock-wise, if the suction is coming from the right and the discharge is heading toward the left. The opposite is true for left-handed, or counter-clockwise rotation. The key is the vantage point when discussing this topic. Make sure both parties are viewing the pump casing from the same side.

Q. How are engines and motors sized for fire pumps?
A. Motors and engines supplied with TKFLO fire pumps are sized according to U.L., F.M. and NFPA 20 (2013), and are designed to operate on any point of the fire pump curve without exceeding the motor nameplate service factor, or engine size. Do not be fooled into thinking that the motors are sized only to 150% of nameplate capacity. It is not uncommon for fire pumps to operate well beyond 150% of rated capacity (for example, if there is an open hydrant or broken pipe downstream).
For more specifics, please refer to NFPA 20 (2013) paragraph 4.7.6, UL-448 paragraph 24.8, and Factory Mutual’s Approval Standard for Split Case Fire Pumps, Class 1311, paragraph 4.1.2. All motors and engines supplied with TKFLO fire pumps are sized to the true intent of NFPA 20, U.L. , and Factory Mutual.
Since fire pump motors are not expected to be running continuously, they are often sized to take advantage of a 1.15 motor service factor. So unlike domestic water or HVAC pump applications, a fire pump motor is not always sized “non-overloading” across the curve. As long as you do not exceed the motor 1.15 service factor, it is allowed. An exception to this is when a variable speed inverter duty electric motor is used.

Q. Can I use a flow meter loop as a substitute for a test header?
A. A flow meter loop is often practical where flowing excessive water through standard U.L. Playpipe nozzles are inconvenient; however, when using a closed flow meter loop around a fire pump, you may be testing the pumps hydraulic performance, but you are NOT testing the water supply, which is a critical component of the fire pump system. If there is an obstruction to the water supply, this will not be evident with a flow meter loop, but will certainly be exposed by testing a fire pump with hoses and Playpipes. On an initial start-up of a fire pump system, we always insist on flowing water through the system to ensure the integrity of the entire system.
If a flow meter loop is returned back to the water supply — such as an above-ground water tank — then under that arrangement you will be able to test both the fire pump and the water supply. Just make sure that your flow meter is properly calibrated.

Q. Do I need to worry about NPSH in fire pump applications?
A. Rarely. NPSH (net positive suction head) is an important consideration in industrial applications, such as boiler feed or hot water pumps. With fire pumps, however, you are dealing with cold water, which uses all of atmospheric pressure to your advantage. Fire pumps need a “flooded suction,” where the water arrives to the pump impeller through gravity. You need this to guarantee a pump prime 100% of the time, so that when you have a fire, your pump operates! It is certainly possible to install a fire pump with a foot valve or some artificial means for priming, but there is no way to guarantee 100% that the pump will function properly when called on to operate. In many split-case double suction pumps, it only takes approximately 3% of air in the pump casing to render the pump inoperable. For that reason, you will not find a fire pump manufacturer willing to risk selling a fire pump for any installation that does not guarantee a “flooded suction” to the fire pump at all times.

Q. When will you answer more questions on this FAQ page?
A. We will add them as issues arise, but feel free to contact us with your questions!

While using the “Client-Oriented” company philosophy, a demanding high-quality management method, innovative producing products and also a sturdy R&D workforce, we always deliver premium quality merchandise, superb solutions and aggressive selling prices for Top Quality China 20feet Hydrochloric Acid HCl Sulphuric Acid Container Tank Lined LLDPE 16mm with Acid Pump Q235B+PE, If possible, make sure you send your necessities with a detailed list including the style/item and quantity you require. We’ll then mail our greatest selling prices to you.
Top Quality China 20feet Hydrochloric Acid Tank, Hydrochloric Acid ISO Tank, By adhering to the principle of “human oriented, winning by quality”, our company sincerely welcomes merchants from at home and abroad to visit us, talk business with us and jointly create a brilliant future.

TKFLO Vertical Turbine Fire Pump Specifications

	Type of Pump	End suction centrifugal pumps with appropriate fitting for providing water supply to fire protection system in buildings, plants and yards.
	Capacity	Up to 2500GPM (567m3/hr)
	Head	Up to 340feet (104meters)
	Pressure	Up to 147 Psi (10 kg/cm2, 1014 KPa)
	House Power	Up to 350HP (260KW)
	Drivers	Horizontal electrical motors and diesel engines
	Liquid type	Water
	Temperature	Ambient within the limits for satisfactory equipment operation.
	Material of Construction	Cast iron, Bronze fitted
scope of supply : Engine drive fire pump+ control panel+ Jockey pump                Electrical motor drive pump +  control panel+ Jockey pump
Other request for the unit please discuses with TKFLO engineers.
