AVHY series Hydraulic Motor Driven Large Flow Submersible Water Pumps

Short Description:

Hydraulic Drive Submersible Pump

TONGKE AVHY series features hydraulic-drive pump-ends, which include rugged cast steel impellers for general pumping of slurries and sledges.

Available semi-recessed vortex impeller for sewage and solids handling up to 5 inches.

Pump bearings independent of hydraulic motor, which means that loads will not affect motor reliability.

Double mechanical seal design, carbon upper surfaces and silicon carbide lower surfaces.


Feature

Advantages and features

1. Efficient and convenient

  The hydraulic motor pump has a compact structure, small size and light weight, making it easy to transport, install and maintain. This makes it advantageous in space-constrained situations. At the same time, it is simple to install and requires no civil engineering works, which can save up to 75% of civil engineering/facilities construction costs.



2.Flexible and fast installation

Installation method: vertical and horizontal optional;

  Installation is easy and usually only takes a few hours to complete, greatly saving time and labor costs.

3. Suitable for tough working environment

When required submerged and power is inconvenient, the hydraulic motor pump can separate the power from the pump. The intermediate distance can be up to 50 meters as needed, effectively solving the functions that traditional submersible pumps cannot achieve.

  1. Flexible control

The control of the hydraulic motor pump is flexible, and precise control of the output torque and speed can be achieved by adjusting parameters of the hydraulic system such as pressure, flow, etc.

  1. Remote operation and automation

The hydraulic motor pump can be remotely controlled through external hydraulic control equipment to achieve automated operations.

  1. Specific problem solutions

In certain applications, where frequent starts and stops are required, shock loads need to be withstood, or output needs to be precisely adjusted, hydraulic motor pumps can provide a better solution.

PERFORMANCE CURVE

1

Hydraulic Drive Submersible Pump

TONGKE AVHY series features hydraulic-drive pump-ends, which include rugged cast steel impellers for general pumping of slurries and sledges.

  1. Available semi-recessed vortex impeller for sewage and solids handling up to 5 inches.

  2. Pump bearings independent of hydraulic motor, which means that loads will not affect motor reliability.

  3. Double mechanical seal design, carbon upper surfaces and silicon carbide lower surfaces.

Our engineers ensure that you have the right equipment for your job, whether it's disaster recovery, routine site drainage or a large, complex sewer bypass project. Population growth and rapid urbanization has led to an increase in home and industry water use. As a result, aging infrastructure is under enormous strain. Working in true partnership with our customers, our engineers listen, learn and adapt to local environments, delivering solutions with more impact than ever before.

Our Engineers will:

 Utilize the most current tools to design and engineer everything from new pump models to large-scale or highly-complex pump systems.

 Design pumping systems specific to your application.

 Provide technical proposals.

 Provide relevant engineering experience to design the best solution for you regardless of where you are in the world.

011

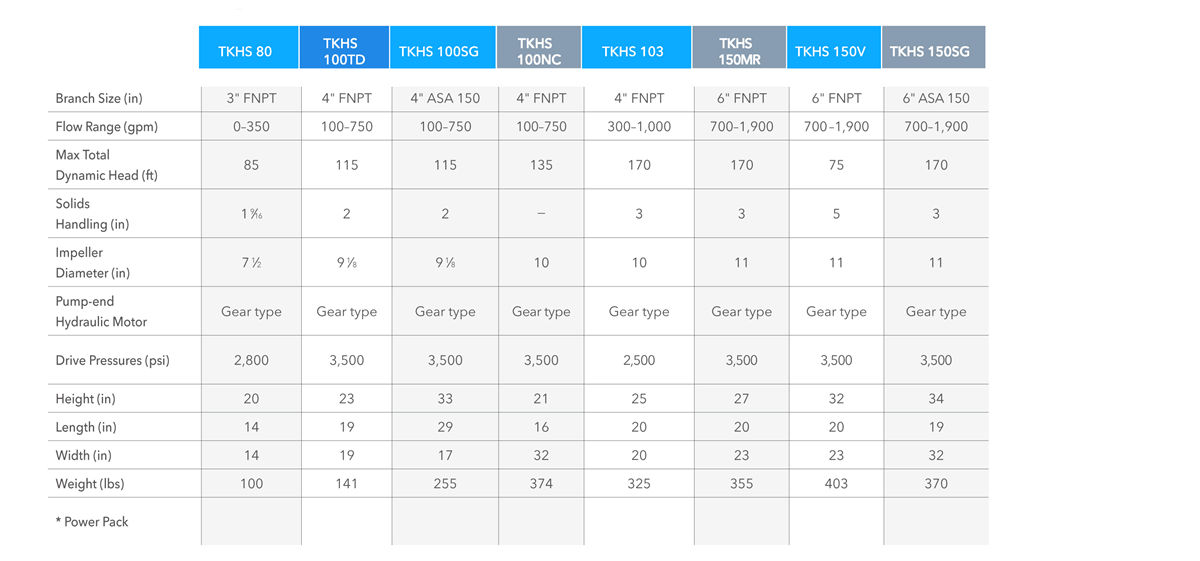

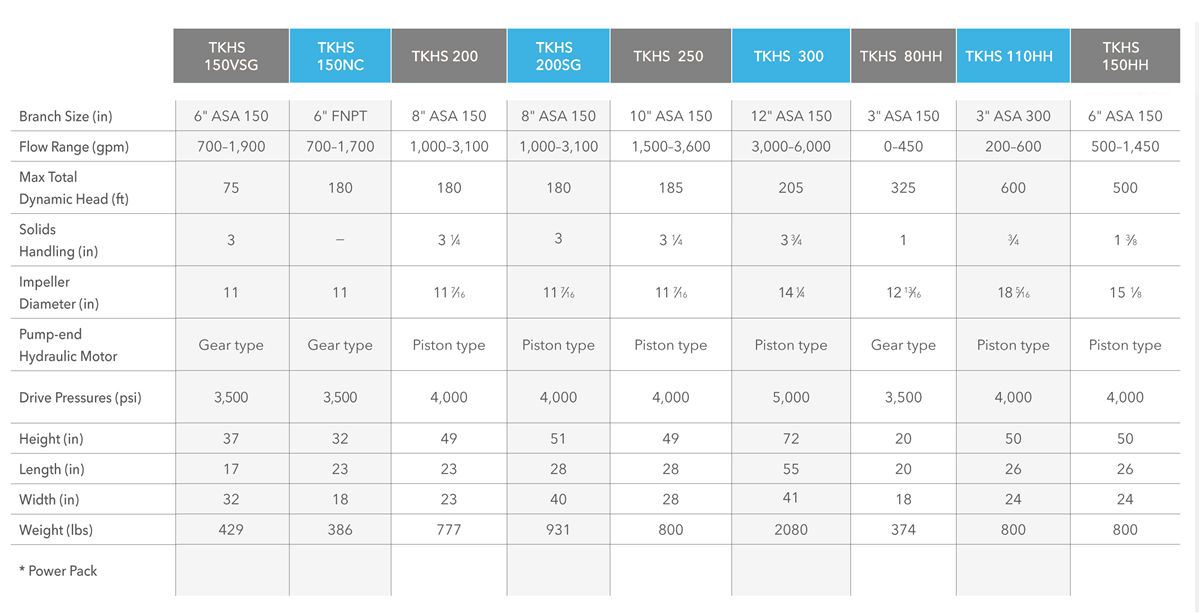

TECHNICAL DATA

Low Head HYDRAULIC DRIVE SUBMERSIBLE PUMP

01

High Head HYDRAULIC DRIVE SUBMERSIBLE PUMP

02

APPLICANT

Water transfer / Flood control

Emergency pumping with backup engine in case of power loss

Construction dewatering

Industrial / Municipal

Pump station bypass / Storm water drainage

Agricultural irrigation

Aquaculture / fish farms

Moving large volumes of water



3
