Test Services

TKFLO Testing Center’s Commitment to Quality

We provide testing services to our customers, and our quality team controls the entire process, providing comprehensive inspection and testing services from the production process to pre-delivery to ensure that the product delivery fully meets the requirements.

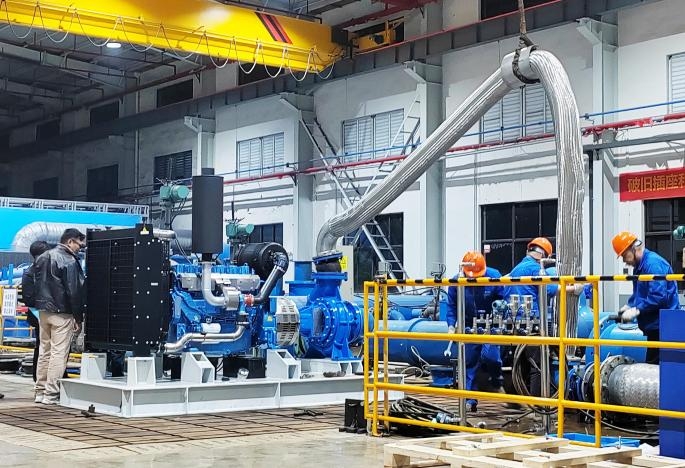

The water pump test Center is the hardware and software device that carries out ex-factory test and type test for submersible electric pump.

Test Center by the national industrial pump quality supervision evaluation, in line with the national standards <ROTARY POWER HYDRAULIC PERFORMANCE TEST> Grade 1&2, <Test Methods for Submersible Electric Pump> Grade 1.

Introduction To Testing Capabilities

● Test water volume 1200m3, Pool Depth:10m

● Maximum capacitance:160KWA

● Test Voltage: 380V-10KV

● Test frequency: ≤60HZ

● Test dimension: DN100-DN1600

TKFLO test centre is designed and built in accordance with ISO 9906 standards and is capable of testing submersible pumps at ambient temperature, fire certified pumps (UL/FM) and a variety of other horizontal and vertical clear water sewage pumps.

TKFLOW Test Item

● Pump performance test, providing pump hydraulic performance test according to ISO 9906-2012 standards, with an accuracy rating of GRADE 1-3.

● Mechanical operation test of pump products: The test bench provides the overall mechanical performance test of pump products and driving machine, as well as the bearing temperature rise, operation noise, product vibration and stability test.

● Centrifugal pump cavitation margin test, the test bench can according to customer requirements on the pump for critical cavitation margin test, to ensure that the product in the installation process after the normal use will not produce cavitation problems.

● In the test of non-motor driven pumps, the power analysis of the product through the power tester can test whether the product meets the energy consumption requirements.

Item	Test project	Test report	Witness	Third party witness
1	Pump performance test	√	√	√
2	Pump casing pressure test	√	√	√
3	Impeller dynamic balance test	√
4	Machinery Test	√	√	√
5	Pump main parts Material Chemistry analyze	√	√	√
6	Ultrasonic Test	√	√	√
7	Surface and painting Check	√	√	√
8	Dimension check	√	√	√
9	Vibration and noise test	√	√	√

We offer some projects for free test services to our clients, while others require paid testing. For a quick and hassle-free response to your inquiry, please feel free to contact us.

Looking at the way forward, Tongke Flow Technology will continue to adhere to the core values of professionalism, innovation, and service, and provide clients with high-quality and modern fluid technology solutions by manufacturing and product teams under the leadership of the professional leadership team to create a better future.
