LDP Series Single-Stage End-Suction Horizontal Centrifugal Pure Water Pumps

Short Description:

Series: LDP

LDP series single-stage end-suction horizontal centrifugal pumps are made by way of improving the design of NT series horizontal centrifugal pumps of ALLWEILER PUMPS company with the performance parameters identical to those of NT series and in line with the requirements of ISO2858. The products are produced strictly according to the relevant requirements, so they have a stable quality and reliable performance and are the brand-new ones instead of model ES horizontal pump, model DL pump etc. ordinary pumps.

They are divided into basic type, A B C cutting type etc. in more than 250 specifications and with a flow 3 range of 3.5-1400m³/h and a head range of 3-140m.

Feature

Product Description

They are divided into basic type, A B C cutting type etc. in more than 250 specifications and with a flow 3 range of 3.5-1400m³/h and a head range of 3-140m.

Product advantage

1.Compact structure. These series pumps have an Horizontal structure, beautiful appearance and less area of occupied land.

2.Stable running, low noise, high concentricity of assembly. The clutch is used to link both pump and motor, making the impeller of a good balance of moving-resting, resulting in no vibration during running and improving the environment of use.

3.No leakage. A mechanical seal antiseptic carbide alloy and packing seal of is used for the shaft sealing.

4.Convenient service. Service can be easily done without removing any pipeline because of the back-door structure.

Working condition

1.Max. Working pressure of pump system is 1.6MPa, that is to say the pressure at the suction + the stroke 1.6MPa, the pressure in static tests is 2.5MPa,please notify the pressure for the system at work when ordering and it should be otherwise noted if the said pressure is larger than 1.6MPa so as to use cast steel material for the over-flow and joint parts.

2.Proper medium: the medium for pure-water pumps should have no corrosive liquid and the volume of non-melting medium solid should not be over 0.1% of the unit volume and the graininess less than 0.2mm. Please notify at order if the medium to be used with small grain.

TECHNICAL DATA

Data range

Capacity: 3.5-1400m³/h

Head: 3-140m

Max Working pressure: to 1.6 MPa

Proper medium: pure-water

STRUCTURE DESCRIPTION

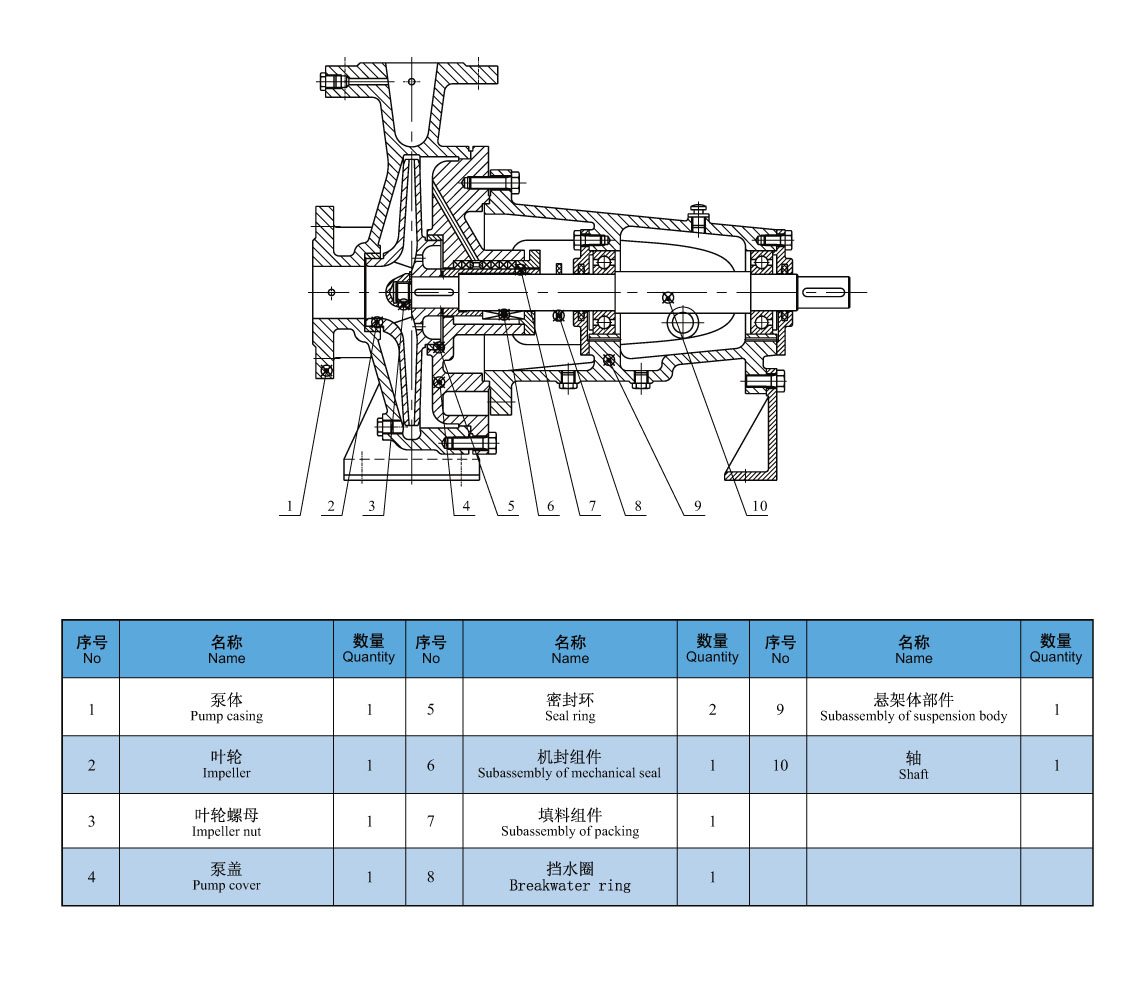

See the figure for the structure. This pump consists of pump casing, impeller, pump cover, suspension body and shaft etc. components. It is a single-stage single-suction

horizontal centrifugal pump and both p ump casing and cover are separated from the back side of the impeller, that is the back-door structural form. For most of the pumps, a seal ring is set in both front and back of the impeller to make a balance action on the axial force of the rotor. There are soft packing seal and mechanical seal, make a note at order.

APPLICANT

Pump Applicant

LDP series horizontal centrifugal pump is used to transport pure water and other liquids of the similar physical nature as pure water and suitable for water supply

and drainage in industries and cities boost water-feeding of high buildings garden irrigation fire-fighting boost remote mater-transportation warming cold-hot water circulation and boost in bathrooms, and equipment completingas well. The temperature of the used medium is under 140℃.
