Feature

Product Description

GDLF Stainless steel vertical multi-stage high pressure centrifugal pumps mounted with a standard motor, the motor shaft is linked, via the motor seat, directly with the pump shaft with a clutch, both pressure-proof barrel and flow-passing components are fixed in between the motor seat and the water in-out section with pull-bar bolts and both water inlet and outlet of the pump are positioned on one line of the pump bottom; and the pumps can be fitted with an intelligent protector, in case of necessity, to effectively protect them against dry movement, lack-of-phase, overload etc.

Product advantage

Compact structure

Light weight

High Efficiency

Good Quality for Long time life

Running Condition

Thin, clean, non-combustible non-explosive liquids containing no solid grains or fibers.

Liquid temperature: constant-temperature type -15~+70℃,hot-water type +70~120℃.

Ambient temperature: max. +40℃.

Elevation: max. 1000m

Note: please note it at the model selection in case the elevation is over 1000m.

TECHNICAL DATA

Data range

Capacity	0.8-150 m3/h
Head	6-400 m
Liquid Temperature	-20-120 ºC
Operation pressure	≤ 40bar

Structural Diagram

Attention: More detailed technical data for Vertical Multistage Centrifugal High Pressure Water Pump please contact Tongke.

Main parts List

Part	Material
Shaft seal form	Packing gland or Mechanical seal
Impeller	Stainless steel 304/316/316L, Bronze, Duplex SS
Bearing	Qualified China Bearing or NTN/NSK/SKF
Shaft	2Cr13, 3Cr13, Duplex SS

Attention: Particular material for project please contact Tongke engineer for suggestions.

APPLICANT

Pump Applicant

GDL are the products of multiple functions, applicable for transporting various different media from tap water to industrial liquids and suitable for different ranges of temperature , flow and pressure .

GDL is applicable for non-corrosive liquids while GDLF for lightly corrosive ones.

Water supply: filter and transportation and quartering water feed for water works, boost for main pipes and high buildings.

Industrial boost: flowing water system, cleaning system, high pressure rinsing system, fire fighting system.

Industrial liquid transportation: cooling & air-conditioning system, boiler water supply & condensing system, completion of machine tools, acid and alkali.

Water treatment: extra-filter system, reverse osmosis system, distilling system, separator, swimming pool.

Irrigation: farmland irrigation, sprinkler irrigation, trickle irrigation.

Part of Sample Project

Pharmaceutical companie's work shop and Building water supply

CURVE

The description below is applicable for the curves shown on the back:

1. All the curves are based on the values measured at the constant speed of 2900rpm or 2950rpm of the motor.

2. The allowed curve differences comply with ISO9906, Appendix A.

3. The water at 20 containing no air is used for the measurement, the moving viscosity of it is 1mm /s.

4. The pump shall be used within the performance range shown by the thickened curves so as to prevent against overheat due to an undersized flow and prevent the motor against overload due to an oversized flow.

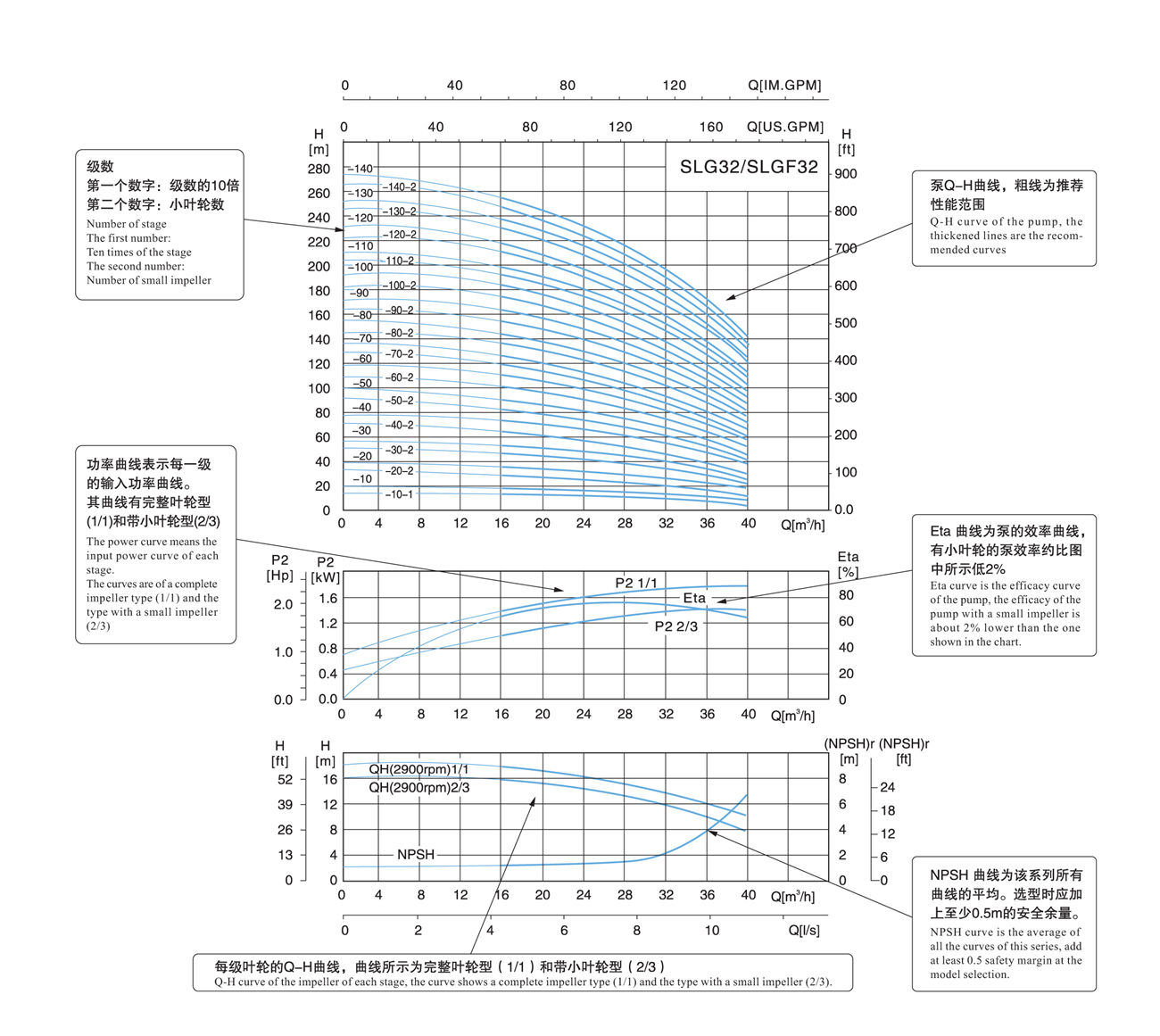

Pump performance chart explanation
