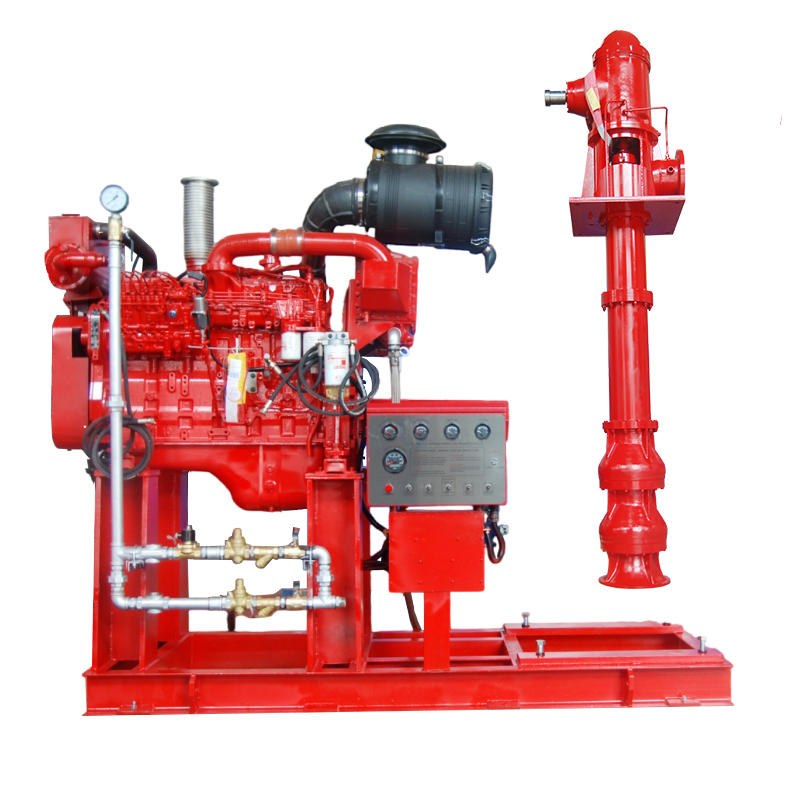

Diesel Engine Drive Vertical Turbine Water Pump Set

Short Description:

Diesel engine drive vertical turbine water pump set. This kind of vertical drainage pump is mainly used for pumping no corrosion, temperature less than 60 °C, suspended solids (not including fiber, the grits) less than 150 mg/L content of the sewage or waste water. VTP type vertical drainage pump is in VTP type vertical water pumps, and on the basis of the increase and the collar, set the tube oil lubrication is water. Can smoke temperature below 60 °C, send to contain a certain solid grain (such as scrap iron and fine sand, coal, etc.) of sewage or waste water.

Feature

Pump data

Capacity	20-5000 m3/h
Head	3-150 m
Working Temperature	0-60 ºC
Power	1.5-3400KW

Material of Vertical Turbine Pump

Bowl: Cast iron/Bronze/ SS304/SS316/SS316L/DSS
Shaft: Stainless steel 420/DSS
Impeller: Cast iron/Bronze/ SS304/SS316/SS316L/DSS
Discharge head: Cast iron or carbon steel

●Customized gear box

●High quality diesel engines are available

Cummins Engine , Deutz , Perkins, Weichai, Shangchai or other designated Chinese brand.

Applicant

Vertical turbines are commonly used in all types of applications, from moving process water in industrial plants to providing flow for cooling towers at power plants, from pumping raw water for irrigation, to boosting water pressure in municipal pumping systems, and for virtually every other imaginable pumping application. Turbines are one of the most popular types of pumps for designers, end-users, installing Contractors, and distributors.

Pump advantage

√ Corrosion resistance main part material, famous brand bearing, thordon bearings suitable for sea water.
√ Excellent design for high Efficiency save energy for you.
√ Flexible installation method suitable for different site.
√ Stable running, Easy to install and maintain.

1.The inlet shall be vertical downward and the outlet horizontal above or under the base.
2.The impeller of pump is classified into enclosed type and half-opening type, and three adjustments: non-adjustable, semi adjustable and full adjustable. It is unnecessary to fill the water when the impellers are fully immersed in the pumped liquid.
3.On the basis o Pump, this type is additionally fit with muff armor tubing and the impellers are made of abrasive resistant material, widening the applicability of pump.
4.The connection of impeller shaft, transmission shaft, and motor shaft applies the shaft coupling nuts.
5.It applies water lubricating rubber bearing and packing seal.
6.The motor generally applies standard Y series tri-phase asynchronous motor, or YLB type tri-phase asynchronous motor as requested. When assembling Y type motor, the pump is designed with anti- reverse device, effectively avoiding reverse of pump.

More detail about our VTP series Long Shaft Vertical Turbine Pump for curve and dimension and data sheet please conatct Tongke.
