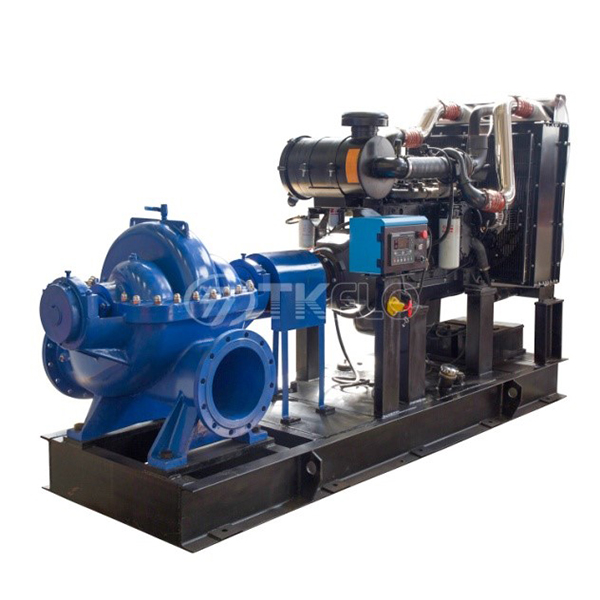

China Diesel Engine Drive Double Suction Split Casing Centrifugal Pump factory and manufacturers

Feature

Model ASN and ASNV pumps are single stage double suction split volute casing(case) centrifugal pump is the new generation of high performance single stage double suction centrifugal pump, mainly used for water plant, air conditioning, water recycling, heating systems, and high-rise building water supply, irrigation and drainage pumping stations, power plants, industrial water supply system, Fire systems, shipbuilding industry, and other places of fluid transmission.

Model Meaning

ANS(V) 150-350(I)A

ANS : Split casing horizontal centrifugal pump

(V) : Vertical type

150: Outlet diameter of pump 150mm

350: Nominal diameter of impeller 350mm

A: Impeller via first cutting

(I): As flow-expanded type

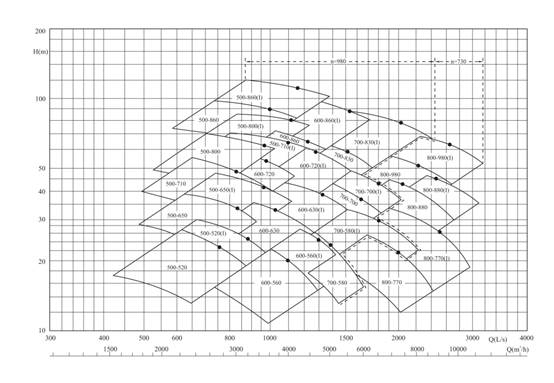

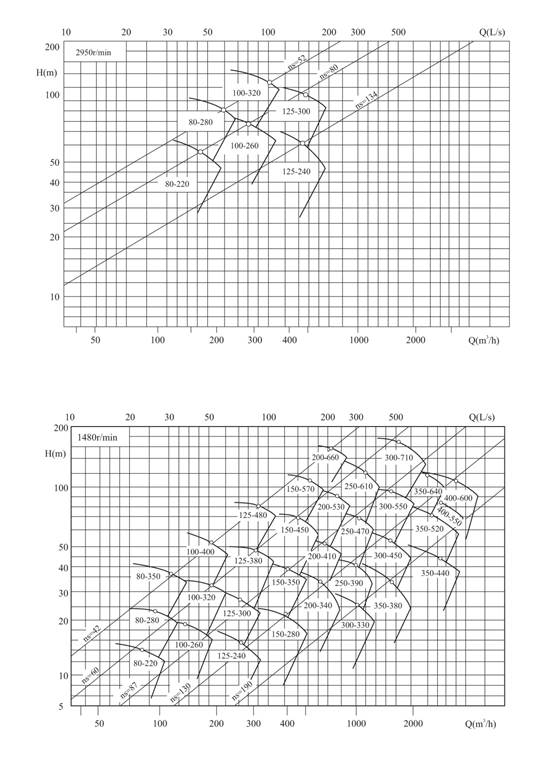

TECHNICAL DATA

Operation Parameter

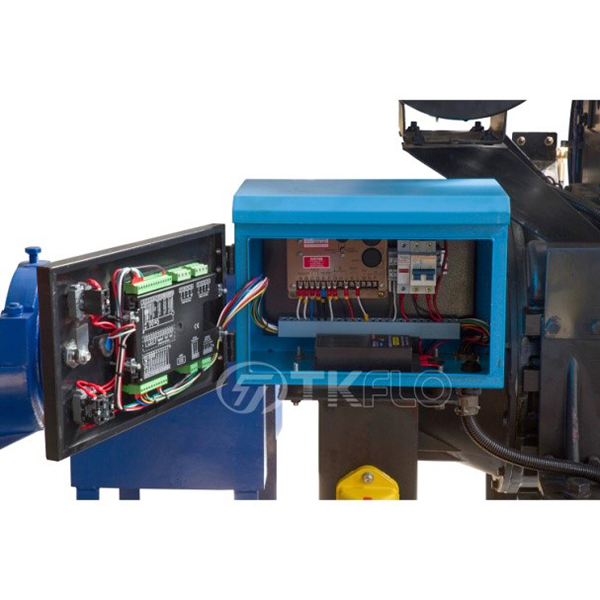

Pump type	ANS(V) split casing with diesel engine
DN(flange)	DN 80-800MM
Capacity	No more than 11600m³/h
Head	200M
Medium Temperature	≤105°C
Medium	Clear water or fire fighting foam
Engine Supplier	Cummins, Deutz, Perkins or China famous brand
Shaft seal	Mechanical seal or packing seal
Bearing	Closed grease lubricated roller bearing Brand: NTN NSK SKF for optional
Flange standard	ASME, DIN, GB
Seal by	Burgman mechanical seal or gland packing
Quality control system	ISO9001:2000, ISO14001, CE, ISO2548,
Main Application	Municipal, construction, ports, Chemical industry, paper making, paper pulp industry, Mining and metallurgy; Fire control, Environmental protection

Recommended Material Configuration

Recommended Material Configuration (For reference only)
Item	Clean water	Drink water	Sewage water	Hot water	Sea water
Case & Cover	Cast iron HT250	SS304	Ductile iron QT500	Carbon steel	Duplex SS 2205/Bronze/SS316L
Impeller	Cast iron HT250	SS304	Ductile iron QT500	2Cr13	Duplex SS 2205/Bronze/SS316L
Wearing ring	Cast iron HT250	SS304	Ductile iron QT500	2Cr13	Duplex SS 2205/Bronze/SS316L
Shaft	SS420	SS420	40Cr	40Cr	Duplex SS 2205
Shaft sleeve	Carbon steel/SS	SS304	SS304	SS304	Duplex SS 2205/Bronze/SS316L
Remarks: Detailed material list will according to liquid and site conditions

Advantage
1.Compact structure nice appearance, good stability and easy installation.
2.Stable running the optimally designed double-suction impeller makes the axial force reduced to the minimum and has a blade-style of very excellent hydraulic performance, both internal surface of the pump casing and the impeller s surface, being precisely cast, are extremely smooth and have a notable performance vapor corrosion resisting and a high efficiency.
3. The pump case is double volute structured, which greatly reduces radial force, lightens bearing's load and long bearing's service life.
4.Bearing use SKF and NSK bearings to guarantee a stable running, low noise and long duration.
5.Shaft seal use BURGMANN mechanical or stuffing seal to ensure a 8000h non-leak running.
6 . Flange standard: GB, HG, DIN, ANSI standard, according to your requirements.

NOTE before order
Parameters necessary to be submitted at order Industry Circulating water pump with Electrical motor.
1. Pump model and the flow, head (including the system loss), NPSHr at the point of the desired working condition.
2. Type of shaft seal (must be noted either mechanical or packing seal and, if not, delivery of the mechanical seal structure will be made).
3. Moving direction of the pump (must be noted in case of a CCW installation and, if not, delivery of a clockwise installation will be made).
4. Parameters of the motor (Y series motor of IP44 is generally used as the low-voltage motor with a power <200KW and, when to use a high voltage one, please note its voltage, protective rating, insulation class, way of cooling, power, number of polarity and manufacturer).
5. The materials of pump casing, impeller, shaft etc. parts. (delivery with the standard allocation will be made if without being noted).
6. Medium temperature (delivery upon a constant-temperature medium will be made if without being noted).
7. When the medium to be transported is corrosive or contains solid grains, please note the features of it.

APPLICANT

Pump Applicant
Municipal, construction, ports
Chemical industry, paper making, paper pulp industry
Mining and metallurgy;
Fire control
Environmental protection

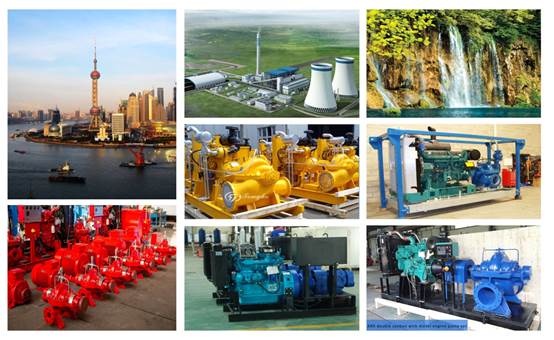

Part of Sample Project
