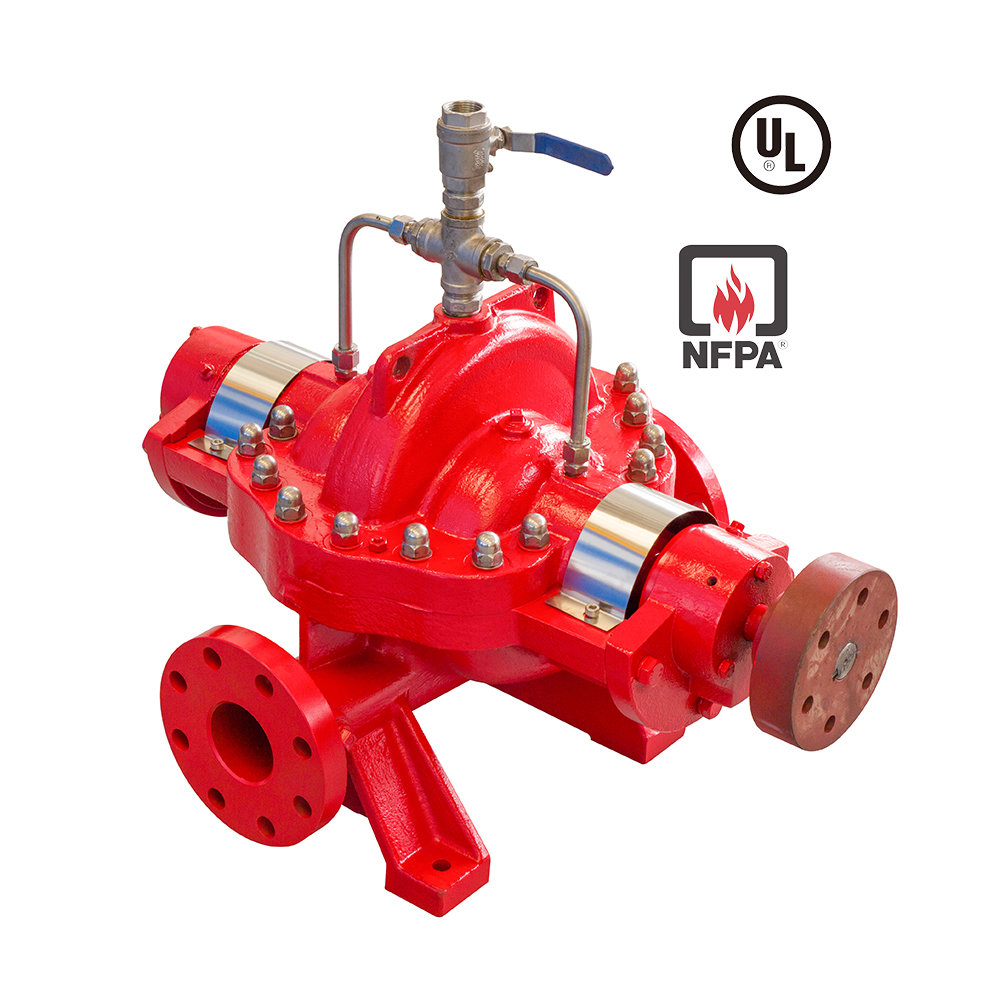

300GPM-2500GPM UL Listed Split Casing Double Suction Centrifugal Fire Pump

Short Description:

Model No：ASN

Precision balancing of all factors in the design of ASN horizontal split case fire pump provide mechanical dependability, efficient operation and minimal maintenance. Simplicity of design ensures long efficient unit life, reduced maintenance costs and minimum power consumption.Split case fire pumps are specifically designed and tested for fire service application around the world including: Office buildings, hospitals, airports, manufacturing facilities, warehouses, power stations, oil and gas industry, schools.

Feature

TECHNICAL DATA

● TKFLO Split Casing Double Suction Fire Pump Specifications

Horizontal split casing centrifugal pumps complies with NFPA 20 and UL listed application requirements and with appropriate fittings for providing water supply to fire protection systems in buildings, factories plants and yards.

	Type of Pump	Horizontal centrifugal pumps with appropriate fitting for providing water supply to fire protection system in buildings, plants and yards.
	Capacity	300 to 5000GPM (68 to 567m3/hr)
	Head	90 to 650 feet (26 to 198 meters)
	Pressure	Up to 650 feet (45 kg/cm2, 4485 KPa)
	House Power	Up to 800HP (597 KW)
	Drivers	Vertical electrical motors and diesel engines with right angle gears, and steam turbines.
	Liquid type	Water or sea water
	Temperature	Ambient within the limits for satisfactory equipment operation.
	Material of Construction	Cast iron, Bronze fitted as standard. Optional materials available for sea water applications.
scope of supply : Engine drive fire pump+ control panel+ Jockey pump Electrical motor drive pump + control panel+ Jockey pump
Other request for the unit please discuses with TKFLO engineers.

UL listed fire fighting pumps date can be choose

Pump Model (split casing pump)	Rated Capacity (GPM)	Inlet×Outlet (INCH)	Rated Net Pressure Range (PSI)	Approx Speed (RPM)	Max working Pressure (PSI)
80-350	300	5×3	129-221	2950	290.00
80-350	400	5×3	127-219	2950	290.00
100-400	500	6×4	225-288	2950	350.00
80-280(I)	500	5×3	86-153	2950	200.00
100-320	500	6×4	115-202	2950	230.00
100-400	750	6×4	221-283	2950	350.00
100-320	750	6×4	111-197	2950	230.00
125-380	750	8×5	52-75	1480	200.00
125-480	1000	8×5	64-84	1480	200.00
125-300	1000	8×5	98-144	2950	200.00
125-380	1000	8×5	46.5-72.5	1480	200.00
150-570	1000	8×6	124-153	1480	290.00
125-480	1250	8×5	61-79	1480	200.00
150-350	1250	8×6	45-65	1480	200.00
125-300	1250	8×5	94-141	2950	200.00
150-570	1250	8×6	121-149	1480	290.00
150-350	1500	8×6	39-63	1480	200.00
125-300	1500	8×5	84-138	2950	200.00
200-530	1500	10×8	98-167	1480	290.00
250-470	2000	14×10	47-81	1480	290.00
200-530	2000	10×8	94-140	1480	290.00
250-610	2000	14×10	98-155	1480	290.00
250-610	2500	14×10	92-148	1480	290.00

SECTION VIEW of Horizontal Split Casing Centrifugal Fire Pump

APPLICANT

Applications vary from small, basic electric motor driven to diesel engine driven, packaged systems. Standard units are designed to handle fresh water, but special materials are available for sea water and special liquid applications.
The TONGKE Fire Pumps give superior performance in Agriculture, General Industry, Building Trade, Power Industry, Fire Protection, Municipal, and Process applications.
